04 Jellyfin

3 min read

New Ubuntu VM:

  • 40GB Storage
  • 2 CPU cores
  • 4096 MB RAM
  • 150GB attached LVM disk

Networking during installation: IP: 192.168.100.11 Subnet mask: 192.168.100.0/24 Gateway: 192.168.100.1

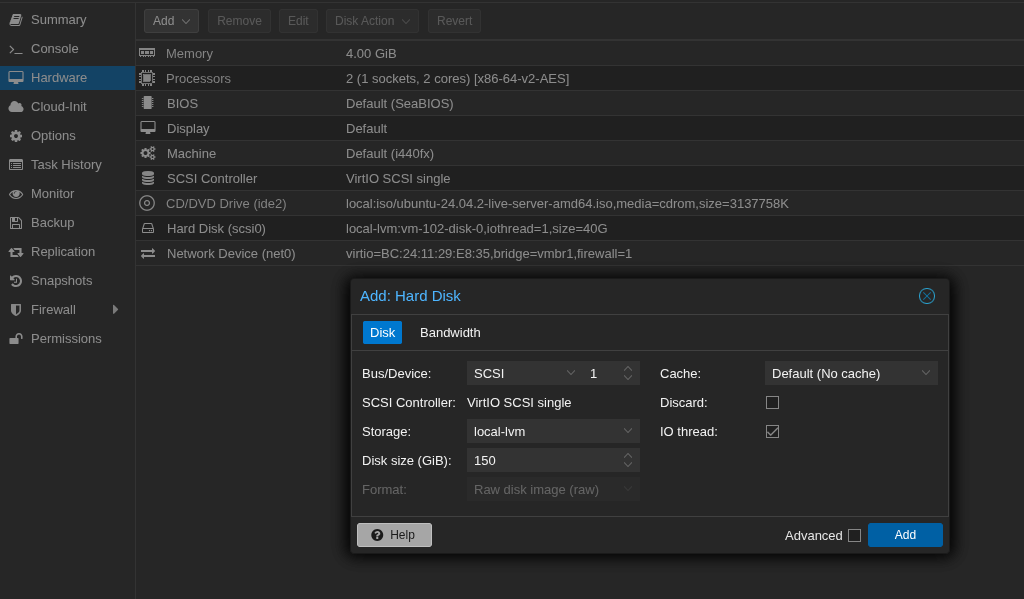

Attach storage, as we did in 02 Immich Installation.

(Reboot)

lsblk

NAME                      MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS
sda                         8:0    0   40G  0 disk
├─sda1                      8:1    0    1M  0 part
├─sda2                      8:2    0    2G  0 part /boot
└─sda3                      8:3    0   38G  0 part
  └─ubuntu--vg-ubuntu--lv 252:0    0   19G  0 lvm  /
sdb                         8:16   0  150G  0 disk
sr0                        11:0    1    3G  0 rom

sudo fdisk /dev/sdb

Command (m for help): n
Partition type
   p   primary (0 primary, 0 extended, 4 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (1-4, default 1):
First sector (2048-314572799, default 2048):
Last sector, +/-sectors or +/-size{K,M,G,T,P} (2048-314572799, default 314572799):

Created a new partition 1 of type 'Linux' and of size 150 GiB.

Command (m for help): w
The partition table has been altered.
Calling ioctl() to re-read partition table.
Syncing disks.

lsblk

NAME                      MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS
sda                         8:0    0   40G  0 disk
├─sda1                      8:1    0    1M  0 part
├─sda2                      8:2    0    2G  0 part /boot
└─sda3                      8:3    0   38G  0 part
  └─ubuntu--vg-ubuntu--lv 252:0    0   19G  0 lvm  /
sdb                         8:16   0  150G  0 disk
└─sdb1                      8:17   0  150G  0 part
sr0                        11:0    1    3G  0 rom

sudo mkdir -p /mnt/jellyfin-data && sudo mount /dev/sdb1 /mnt/jellyfin-data/

df -h /mnt/media/

Filesystem      Size  Used Avail Use% Mounted on
/dev/sdb1       147G   28K  140G   1% /mnt/media

sudo bklid /dev/sdb1

/dev/sdb1: UUID="0c9db7f3-d899-423d-ac0d-4314019a1b29" BLOCK_SIZE="4096" TYPE="ext4" PARTUUID="ae2cf8da-01"

Append into /etc/fstab: UUID=0c9db7f3-d899-423d-ac0d-4314019a1b29 /mnt/media ext4 defaults 0 2

Unmount/remount

sudo umount /mnt/media
sudo systemctl daemon-reload
sudo mount -a

lsblk

NAME                      MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS
sda                         8:0    0   40G  0 disk
├─sda1                      8:1    0    1M  0 part
├─sda2                      8:2    0    2G  0 part /boot
└─sda3                      8:3    0   38G  0 part
  └─ubuntu--vg-ubuntu--lv 252:0    0   19G  0 lvm  /
sdb                         8:16   0  150G  0 disk
└─sdb1                      8:17   0  150G  0 part /mnt/jellyfin-data
sr0                        11:0    1    3G  0 rom

Jellyfin Installation

From Jellyfin’s installation page for Debian: https://jellyfin.org/downloads/server

curl -s https://repo.jellyfin.org/install-debuntu.sh | sudo bash

After waiting for installation to finish!…

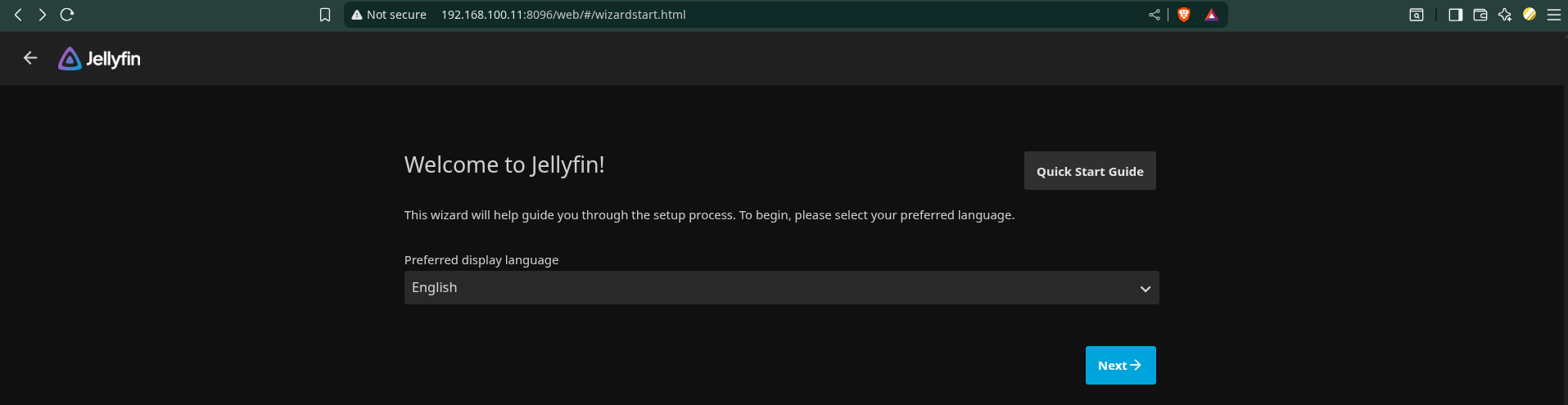

Continue with login, set admin credentials, etc

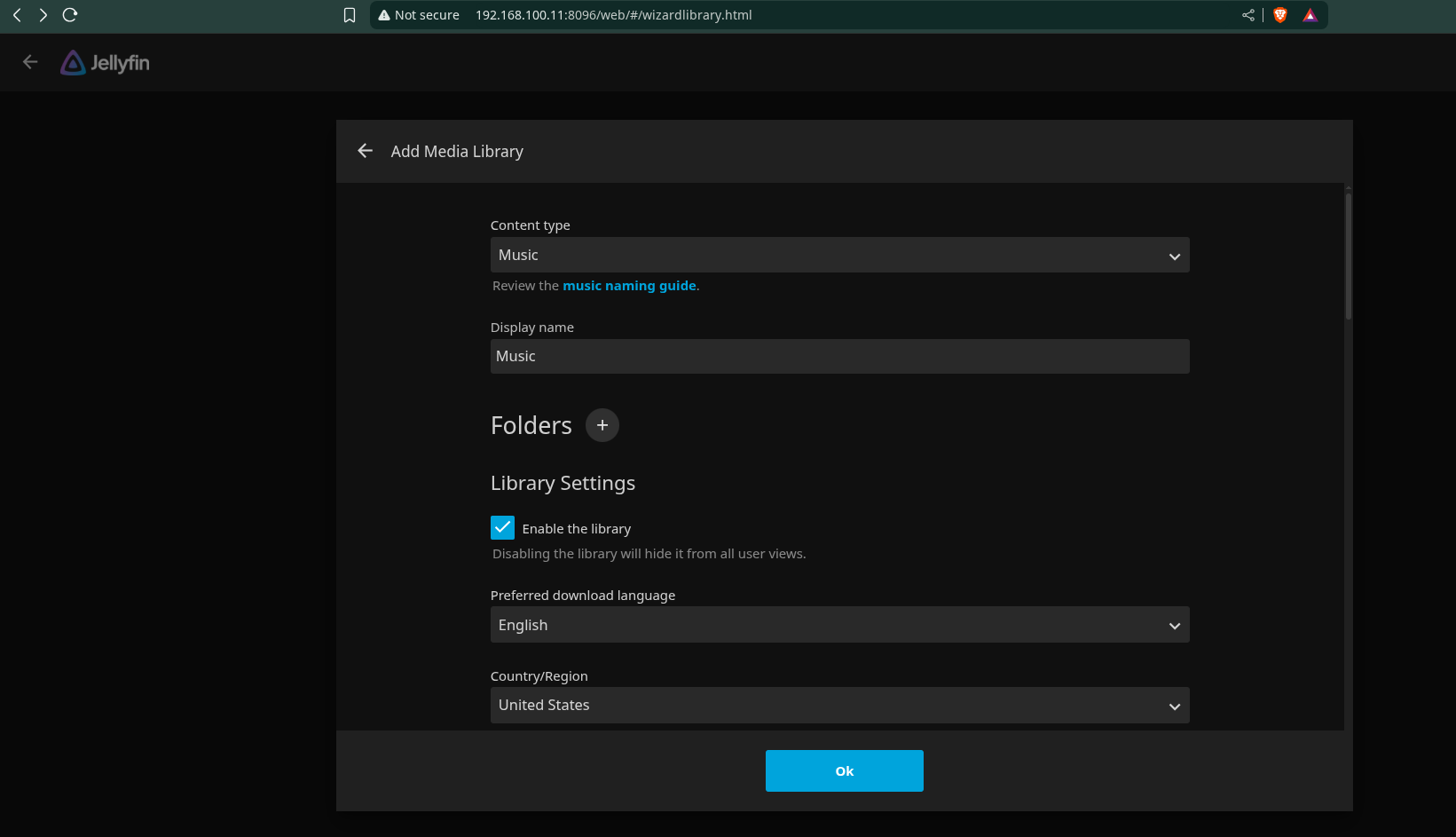

Create media library for Music, keep all default settings except for changing language and region. Add folder /mnt/media/audio (not shown in screenshot).

Troubleshooting Notes

Trouble when copying data to the mounted drive via SCP:

scp -i <ssh_key_path> -r /media/localuser/full_backup/audio/ user@192.168.100.11:/mnt/media

Enter passphrase for key '<ssh_key_path>':
scp: stat remote: No such file or directory
scp: failed to upload directory /media/exis/full_backup/audio to /mnt/media

Current owner is probably root, not user, which is why there are permission issues copying as user: Check this:

ls -ld /mnt/media
mount | grep media

Change owner to fix:

sudo chown user:user /mnt/media
sudo chmod 755 /mnt/media
